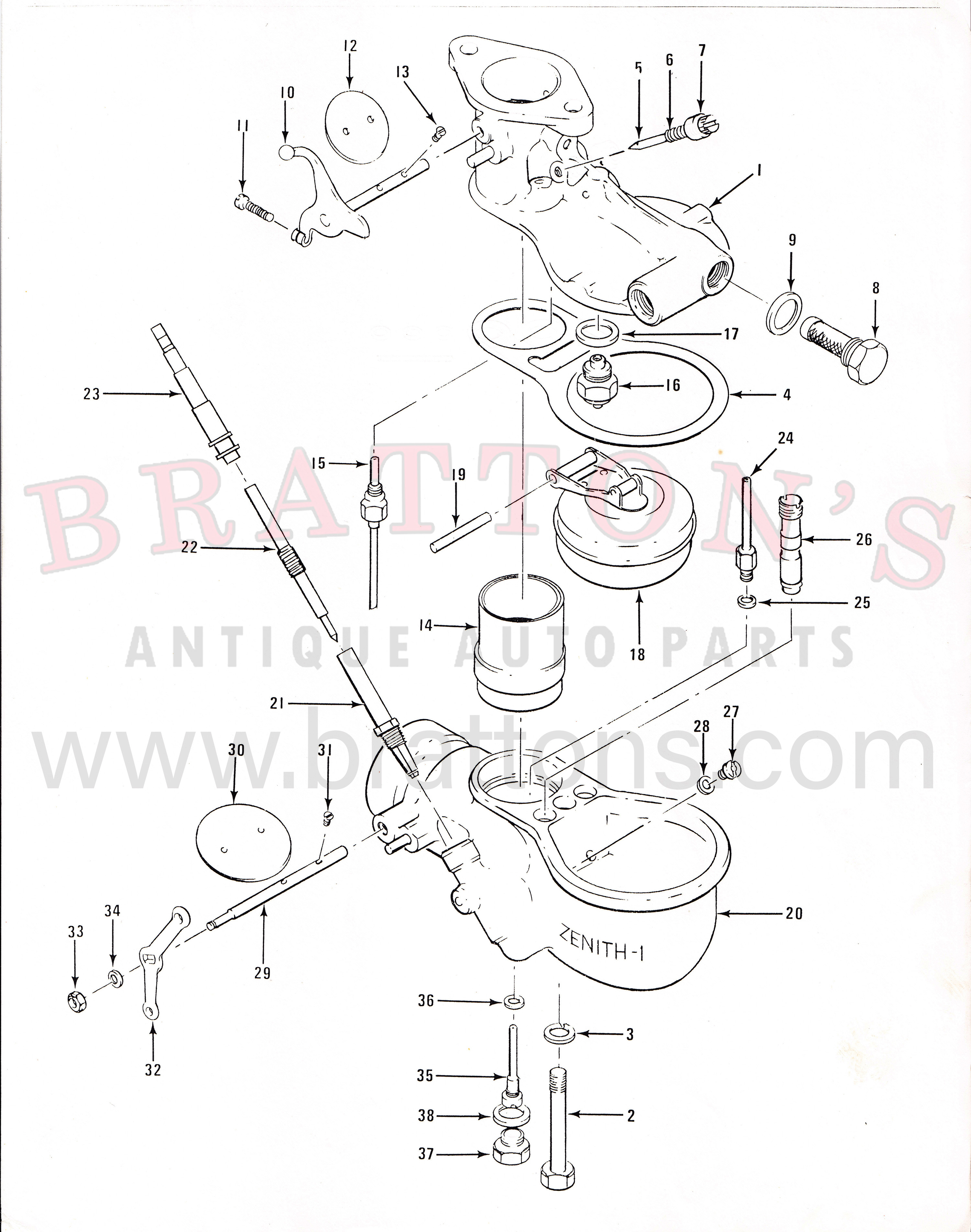

32-34 ZENITH CARBURETOR ASSEMBLY

32-34 ZENITH CARBURETOR ASSEMBLY


1932 ZENITH CARBURETOR GASKET KIT
1932 ZENITH CARBURETOR GASKET KIT

Part #: 13800

$2.80
/SET
32-34 MODEL B ZENITH ADJUSTING NEEDLE
32-34 MODEL B ZENITH ADJUSTING NEEDLE

Part #: 13981

$9.95
/EA
32-34 MODEL B GAS ADJUSTMENT NEEDLE HOUSING
32-34 MODEL B GAS ADJUSTMENT NEEDLE HOUSING

Part #: 14001

$19.50
/EA
32-34 MODEL B ZENITH POWER JET
32-34 MODEL B ZENITH POWER JET

Part #: 14021

$7.25
/EA
32-34 MODEL B ZENITH MAIN JET
32-34 MODEL B ZENITH MAIN JET

Part #: 14041

$12.35
/EA
32-34 MODEL B ZENITH CAP JET
32-34 MODEL B ZENITH CAP JET

Part #: 14061

$14.95
/EA
32-34 MODEL B ZENITH IDLE JET
32-34 MODEL B ZENITH IDLE JET

Part #: 14071

$19.50
/EA
CARBURETOR AIR SHUTTER (CHOKE) SHAFT NUT
CARBURETOR AIR SHUTTER (CHOKE) SHAFT NUT

Part #: 14110

$0.62
/EA
CARBURETOR AIR SHUTTER OR (CHOKE) LEVER
CARBURETOR AIR SHUTTER OR (CHOKE) LEVER

Part #: 14150

$2.90
/EA
32-34 MODEL B CHOKE PLATE
32-34 MODEL B CHOKE PLATE

Part #: 14201

$14.50
/EA
32-34 MODEL B ZENITH FLOAT PIN
32-34 MODEL B ZENITH FLOAT PIN

Part #: 14251

$3.05
/EA
32 - 34 FLOAT VALVE 1932-34
32 - 34 FLOAT VALVE 1932-34

Part #: 14301

$26.95
/EA
MODEL B CARB. FLOAT BAFFLE
MODEL B CARB. FLOAT BAFFLE

Part #: 14302

$43.75
/EA
32-34 MODEL B CARBURETOR ASSIST SPRING
32-34 MODEL B CARBURETOR ASSIST SPRING

Part #: 14304

$15.75
/EA
32-34 MODEL B ZENITH FLOAT VALVE SHIM KIT
32-34 MODEL B ZENITH FLOAT VALVE SHIM KIT

Part #: 14305

$1.50
/SET
ZENITH CARBURETOR COMPENSATOR JET
ZENITH CARBURETOR COMPENSATOR JET

Part #: 14370

$3.60
/EA
32-34 MODEL B THROTTLE SHAFT ONLY
32-34 MODEL B THROTTLE SHAFT ONLY

Part #: 14491

$14.85
/EA
32-34 MODEL B THROTTLE PLATE
32-34 MODEL B THROTTLE PLATE

Part #: 14551

$12.80
/EA
30 - 34 ZINC CARBURETOR LOWER DRAIN PLUG
30 - 34 ZINC CARBURETOR LOWER DRAIN PLUG

Part #: 14600

$3.25
/EA
32-34 ZENITH PASSAGE PLUGS
32-34 ZENITH PASSAGE PLUGS

Part #: 14641

$9.95
/SET
